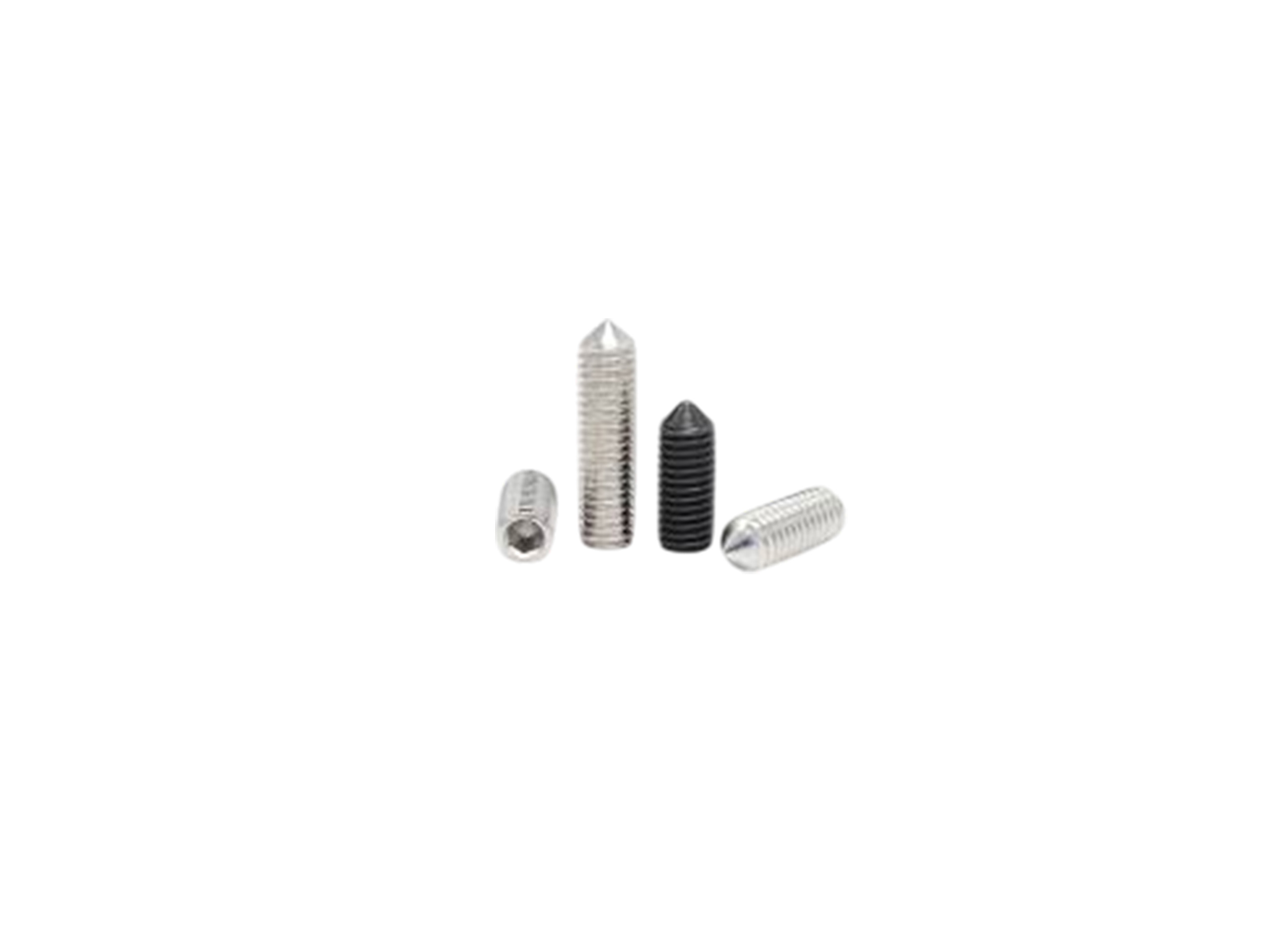

Socket Set Screw with Dog point (DIN915)

Material :
Steel , Stainless Steel 304 (A2)

Finishing :
Steel comes in Black Oxide Finishing

Note:
Drop us an email if you have other coating requirement

Read More:

Category: . Tag: .

Product Description

Diameter (d) M2 M2.5 M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M24
Pitch 0.4 0.45 0.5 0.7 0.8 1.0 1.25 1.5 1.75 2.0 2.0 2.5 2.5 3.0
kmax 1.7MM 2MM 2MM 2.5MM 3MM 3.5MM 5MM 6MM 8MM 9MM 10MM 11MM 12MM 15MM
s 0.9MM 1.3MM 1.5MM 2MM 2.5MM 3MM 4MM 5MM 6MM 6MM 8MM 10MM 10MM 12MM
dpmax 1MM 1.5MM 2MM 2.5MM 3.5MM 4MM 5.5MM 7MM 8.5MM 10MM 12MM 13MM 15MM 18MM
Length (L) 4MM – 10MM 3MM – 10MM 3MM – 12MM 4MM – 16MM 5MM – 20MM 6MM – 30MM 8MM – 40MM 10MM – 50MM 12MM – 50MM 14MM – 60MM 16MM – 60MM 20MM – 50MM 20MM – 60MM –
